This is a connector produced by PHOENIX CONTACT, model MC 1,5/ 2-STF-3,5, with a nominal current of 8 A, a nominal voltage of 160 V, a pitch of 3.5 mm, a screw connection and a green color.
The MC 1,5/2-STF-3,5 is a green, press‑in or soldering terminal block with a 3.5 mm pitch and two positions. It is rated for 8 A nominal current and 160 V nominal voltage, and complies with WEEE/RoHS regulations.

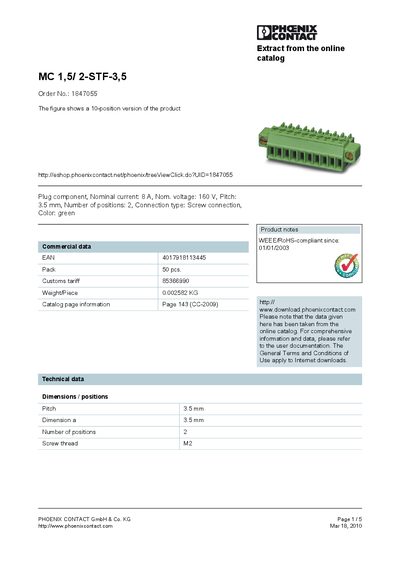

The sheet provides commercial data such as EAN 4017918113445, weight per piece 0.002582 kg, and customs tariff 85366990. It also lists related accessories, marking codes, tools, and certification approvals (CSA, CUL, UL, VDE‑PZI).
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 2 |
| Weight per piece | 0.002582 kg |
| EAN | 4017918113445 |
The terminal block is rated for a nominal current of 8 A.
The pitch is 3.5 mm.
It has two positions.
Each piece weighs 0.002582 kg.
