This product is a PC terminal block, model PLH 16/ 6-15, produced by PHOENIX CONTACT. The nominal voltage is 1000V. The pitch is 15mm. The number of positions is 6. The connection type is spring cage connection. The assembly is soldering. The conductor/PCB connection direction is 0 degree. The color is green.
The PLH 16/6-15 is a 6‑position spring‑cage terminal block with a 15 mm pitch, designed for a nominal voltage of 1000 V. It is supplied in green‑colored housing and is RoHS/WEEE‑compliant.

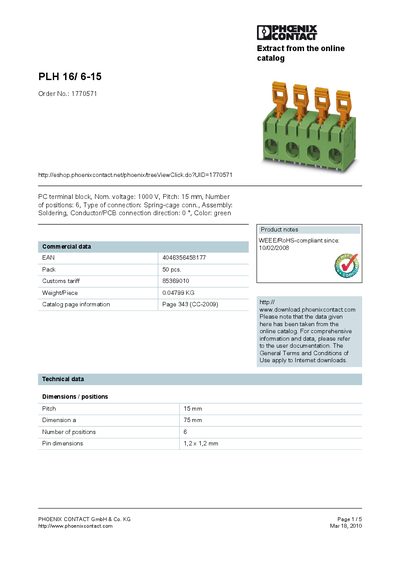

The leaflet lists detailed technical specifications such as pin dimensions, conductor cross‑section ranges, and mechanical dimensions, and includes ordering information (Order No. 1770571) and contact details for Phoenix Contact.
| Pitch | 15 mm |
|---|---|
| Number of positions | 6 |
| Pin dimensions | 1.2 x 1.2 mm |
| Weight per piece | 0.04799 kg |
| Pack size | 50 pcs |
| Color | green |
It has six positions.
The pitch is 15 mm.
The order number is 1770571.
