This document describes the features and characteristics of the PC terminal block product PTSA 0,5/12-2,5-Z from PHOENIX CONTACT GmbH & Co. KG. The product has 10 positions, a nominal current of 2A, a nominal voltage of 160V, a pitch of 2.5mm, a spring-cage connection, a 45° conductor/PCB connection direction, and other features.

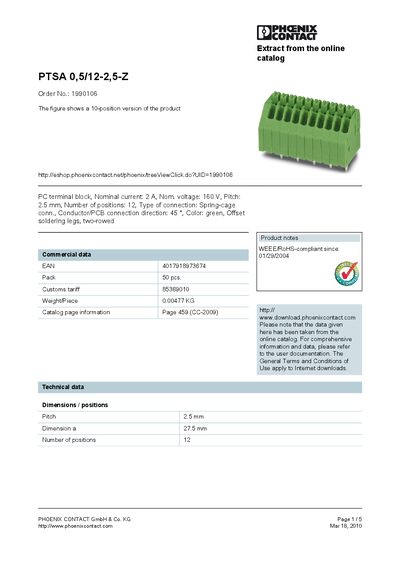

This datasheet provides the key technical data for the Phoenix Contact PTSA 0.5/12-2.5-Z terminal block, including electrical ratings, mechanical dimensions, and connection details. The document is extracted from the online catalog and includes drawings, pinning options, and derating information.
The sheet lists the nominal current (2 A), nominal voltage (160 V), pitch (2.5 mm), and the 12‑position configuration. Additional information such as surge voltage ratings, insulating material, and certification approvals (CUL, UL, VDE‑PZI) are also provided.
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 2.5 mm |
| Number of positions | 12 |
| Type of connection | Spring‑cage |
The nominal current rating is 2 A.
It has 12 positions.
The pitch is 2.5 mm.
The nominal voltage is 160 V.
