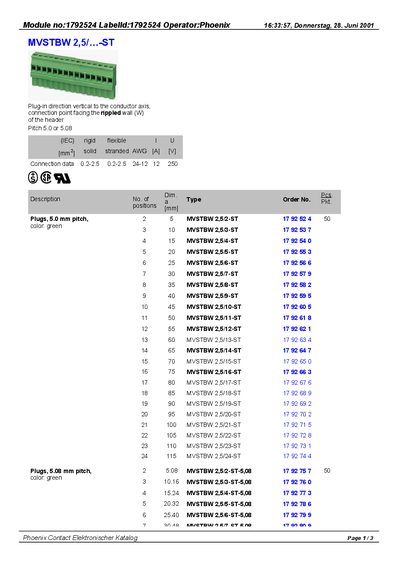

This document introduces the MVSTBW series 2.5/...-ST plug-in modules from Phoenix Contact. The module has a vertical plug-in direction to the conductor axis, with the connection point facing the rippled wall. The plug pitch is 5.0 or 5.08 (IEC) [mm^2], and it can connect rigid solid 0.2-2.5 and flexible stranded 0.2-2.5 AWG 24-12. The rated current is 12A, and the rated voltage is 250V. The plug color is green, and there are options for 2 to 24 positions. Different plug sizes can be selected according to requirements. The document lists the detailed specifications of different models of plug-in modules.
This handbook presents the MVSTBW 2.5/-ST series of plug connectors from Phoenix Contact. It lists the available variants, ordering numbers, and colour options, and gives guidance on plug orientation and connection points.
The document includes technical data such as pitch, nominal voltage and current, UL and CSA approvals, and dimensional drawings. It also provides connection capacity tables and stripping length information for proper installation. This manual is written in German.
| Pitch | 5.0 or 5.08 mm |
|---|---|
| Nominal voltage / current | 300 V / 10 A |
The pitch is 5.0 mm or 5.08 mm.
The nominal rating is 300 V and 10 A.
They are approved according to UL and CSA standards.
