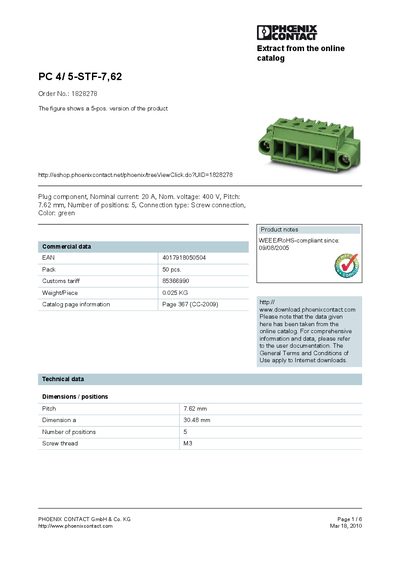

PC 4/ 5-STF-7,62 is a plug component from PHOENIX CONTACT with a nominal current of 20A, a nominal voltage of 400V, an installation spacing of 7.62mm, a connection type of screw connection and a green color
The PC 4/5-STF-7,62 is a 5‑position screw‑connection terminal block designed for 20 A nominal current and 400 V nominal voltage. It features a 7.62 mm pitch, green colour coding, and complies with WEEE/RoHS regulations.
The document lists detailed technical specifications, tightening torque values, surge voltage ratings, certification approvals (CSA, CUL, UL, etc.), and a range of accessories such as marker pens, plug adapters, and tools. Diagrams illustrate current‑carrying capacity and derating curves, and contact information for Phoenix Contact is provided.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 5 |
| Connection type | Screw connection |
| Weight per piece | 0.025 kg |
The nominal current is 20 A.
It has 5 positions.
The tightening torque ranges from 0.5 Nm (minimum) to 0.6 Nm (maximum).
It is certified by CSA, CUL, DNV, GL, GOST, LR, and UL.
