This is a 20A 250V PC terminal block that can be used for wire-to-wire and wire-to-board connections. It is green and has the part number 1705469. It can be combined to create different numbers of terminals.

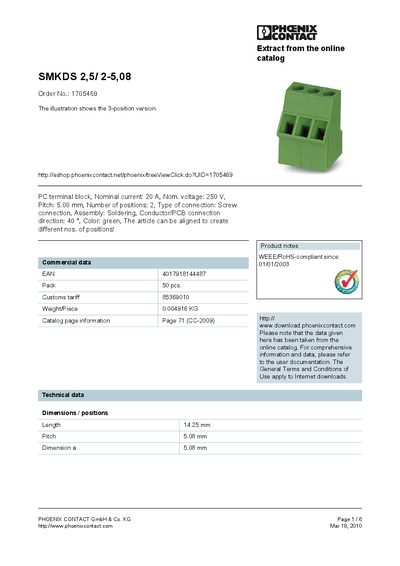

The SMKDS 2,5/2-5,08 is a 2‑position terminal block with a 5.08 mm pitch, designed for screw connection and soldering assembly. It is rated for 20 A nominal current and 250 V nominal voltage, with a green housing and a 40° conductor/PCB connection direction.
The document provides detailed technical specifications, certification information, and a list of compatible accessories such as insertion bridges, marker pens, and specialized screwdrivers. Contact details for Phoenix Contact and ordering information are also included.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 2 |
| Type of connection | Screw connection |
| Assembly | Soldering |
| Color | green |
| Inflammability class | UL 94 |
The terminal block is rated for a nominal current of 20 A.
It uses a 5.08 mm pitch.
It is certified by CB, CCA, CSA, CUL, GOST, SEV and UL.
