Headers, plug-in direction vertical to the p.c.b. Pitch 3.5 or 3.81. Connection data I [A] 8 U [V] 160 CA

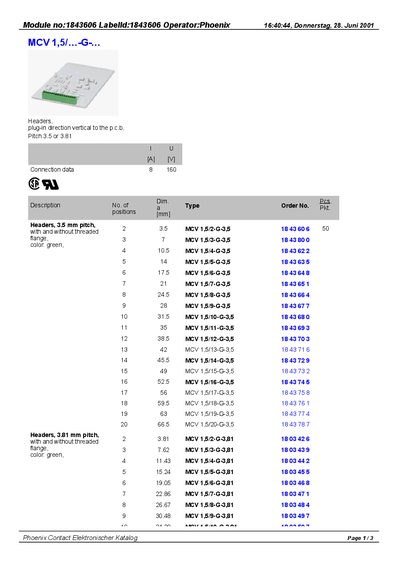

The document provides technical specifications for the Phoenix Contact module 1843606. It lists the available pitch options, dimensions, color, and the number of terminal positions for the MCV series terminal blocks.
Additional information includes accessory details, approval data (UL and CSA), and drilling diagrams for mounting. The sheet also references insulation material groups, surge voltage categories, and fixing screw requirements.
| Pitch | 3.5 mm or 3.81 mm |
|---|---|
| Number of positions | 20 |
| Color | green |
The module is offered with a pitch of 3.5 mm or 3.81 mm.
The module can be configured with up to 20 terminal positions.
The module is supplied in green.
