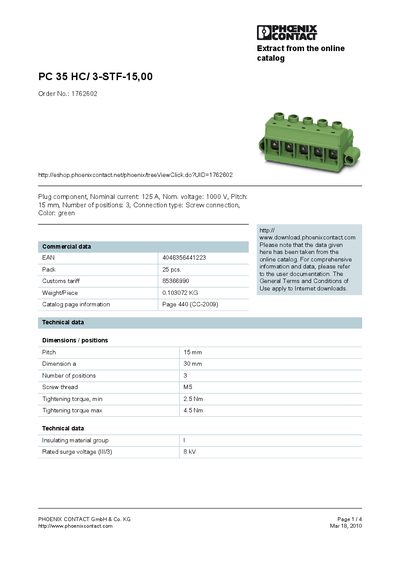

This document describes the PC 35 HC/3-STF-15,00 plug component from PHOENIX CONTACT GmbH & Co. KG. The features of this component include a nominal current of 125A, nominal voltage of 1000V, pitch of 15mm, 3 positions, screw connection, and green color.
The PC 35 HC/ 3-STF-15,00 is a green‑colored plug component designed for a nominal current of 125 A and a nominal voltage of 1000 V. It features a screw connection, a 15 mm pitch and three positions.
The document provides detailed technical data such as dimensions (30 mm height, 15 mm pitch), tightening torque (25 Nm min, 4.5 Nm max), weight (0.103072 kg per piece), and various conductor cross‑section tables. It also includes diagrams, commercial data (EAN 4046356441223) and contact information for Phoenix Contact.
| Nominal current | 125 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 15 mm |
| Number of positions | 3 |
| Screw thread | M5 |
| Tightening torque (min) | 25 Nm |
| Tightening torque (max) | 4.5 Nm |
| Weight per piece | 0.103072 kg |
| EAN | 4046356441223 |
The nominal current rating is 125 A.
The pitch is 15 mm.
It has three positions.
