This document provides specifications and technical data for the PC terminal block PLH 16/ 6-10-ZF by PHOENIX CONTACT GmbH & Co. KG, including rated voltage, pitch, number of positions, and type of connection.

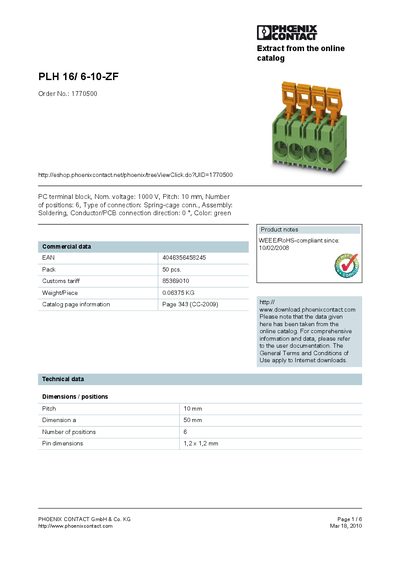

This handbook presents the PLH 16/6-10-ZF terminal block from Phoenix Contact. It includes product notes, ordering information, and compliance details such as WEEE/RoHS status.
Technical sections cover dimensions, pitch, pin spacing, insulating material, voltage ratings, and connection data. Several drawings illustrate the drilling plan, functional layout, and dimensioned view of the component.
| Nominal voltage | 1000 V |
|---|---|
| Pitch | 10 mm |
| Number of positions | 6 |
| Pin dimensions | 1.2 x 1.2 mm |
| Weight per piece | 0.06375 kg |
| Pack size | 50 pcs |
| EAN | 4046356458245 |
| Overall length (a) | 50 mm |
The nominal voltage is 1000 V.
It has 6 positions.
The pitch is 10 mm.
Each piece weighs 0.06375 kg.
