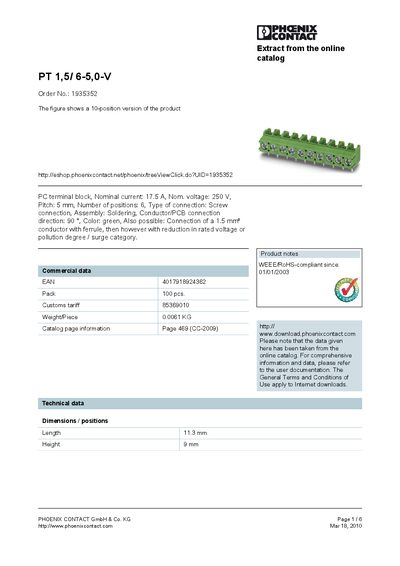

PT 1,5/ 6-5,0-V is a 6-position terminal block produced by PHOENIX CONTACT. It has a nominal current of 17.5 A, a rated voltage of 250 V, a pin spacing of 5 mm, a connection method of screw connection, an assembly method of soldering, a conductor/PCB connection direction of 90 °, and a green color.
The PT 1,5/6-5,0-V is a compact terminal block with a 5 mm pitch and six positions. It features a screw‑type connection, can be assembled by soldering, and is supplied in a green housing.
Technical data include a nominal current of 17.5 A, a nominal voltage of 250 V, dimensions of 11.3 mm × 9 mm, and a weight of 0.0061 kg per piece. The block complies with RoHS and carries certifications such as CUL, SEV, and UL.
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 6 |
| Type of connection | Screw connection |
| Assembly method | Soldering |
| Length | 11.3 mm |
| Height | 9 mm |
| Weight per piece | 0.0061 kg |
| Color | green |
The terminal block is rated for a nominal current of 17.5 A.
The pitch of the block is 5 mm.
It provides six positions for connections.
Each block weighs 0.0061 kg.
