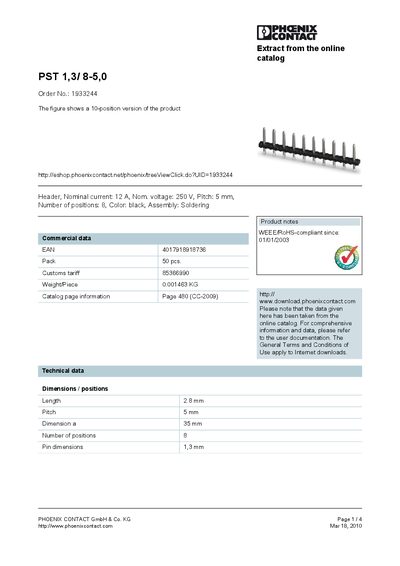

This document describes the PST 1,3/8-5,0 product from PHOENIX CONTACT GmbH & Co. KG, including specifications, dimensions, and technical data.
The PST 1,3/8-5,0 is an 8‑position, 5 mm pitch connector offered by Phoenix Contact. It is supplied in black, sold in packs of 50, and complies with WEEE/RoHS regulations.
The sheet provides detailed electrical ratings (12 A, 250 V), mechanical dimensions (2.8 mm length, 35 mm overall), pin size (1.3 mm), and certification information (CUL, CCA, GOST, SEV, UL). Additional data include weight per piece, EAN code and ordering details.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 8 |
| Color | black |
| Length | 2.8 mm |
| Overall dimension a | 35 mm |
| Pin dimension | 1.3 mm |
| Weight per piece | 0.001463 kg |
| EAN | 4017918918736 |
| Pack quantity | 50 pcs |
| Certifications | CUL, CCA, GOST, SEV, UL |
The connector is rated for a nominal current of 12 A (depends on the plug used).
It has eight positions.
The pitch is 5 mm.
It is certified according to CUL, CCA, GOST, SEV and UL standards.
