This document provides information about the CC2200FF power entry modules in different versions, including standard and medical versions. The modules feature a compact design, optimal shielding, and easy installation. They are designed for both standard and medical applications and comply with the IEC/EN 60950 standard. The document also provides technical data and specifications of the product.

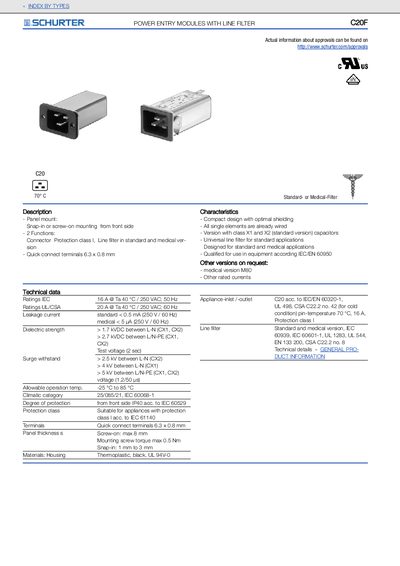

The SCHURTER C20F is a compact power entry module with an integrated line filter, offered in both standard and medical versions. It features panel‑mount designs with snap‑in or screw‑on mounting, quick‑connect terminals (6.3 × 0.8 mm), and a thermoplastic housing.
Technical data include rated currents of 16 A (50 Hz) and 20 A (60 Hz), low leakage currents, high dielectric strength, and an operating temperature range from –25 °C to 85 °C. Various order numbers specify the filter type, mounting style, and capacitor class (X1/X2).
| Rated current (50 Hz) | 16 A @ 250 VAC |
|---|---|
| Rated current (60 Hz) | 20 A @ 250 VAC |
| Leakage current (standard) | < 0.5 mA (250 V / 60 Hz) |
| Leakage current (medical) | < 5 µA (250 V / 60 Hz) |
| Surge withstand (L‑N) | > 1.7 kVDC |
| Operating temperature range | -25 °C to 85 °C |
| Degree of protection | IP40 |
| Quick‑connect terminal size | 6.3 × 0.8 mm |
| Housing material | Thermoplastic, black, UL 94V‑0 |
| Panel thickness (screw‑on) | max 8 mm |
The C20F is offered with 16 A at 250 VAC (50 Hz) and 20 A at 250 VAC (60 Hz).
The standard version has a leakage current of less than 0.5 mA at 250 V/60 Hz.
It can be mounted with snap‑in or screw‑on mounting from the front side.
The module operates from –25 °C up to 85 °C.
