OGG 6.3x32 is a fuse holder from Schneider Electric, which can be fixed through PCB, screw or rivet, with rated voltage 250 VAC and rated current 16 A (UL).

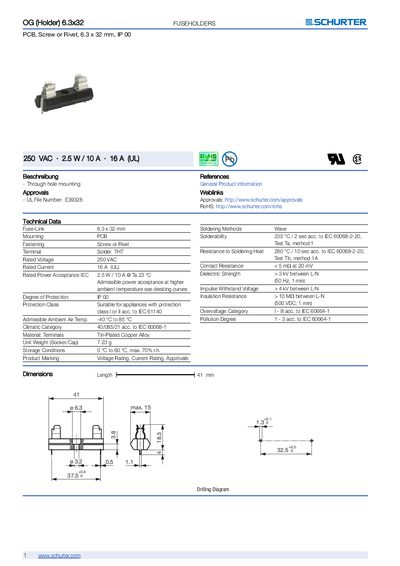

The SCHURTER 6.3 × 32 mm IP 00 PCB fuse holder is a through‑hole fuse holder designed for mounting on printed circuit boards using a screw or rivet. It complies with UL approvals and RoHS directives and is suitable for appliances requiring protection up to 500 VDC.
Key features include a rated voltage of 250 VAC, a rated current of 16 A (UL), dielectric strength over 3 kV L‑N, IP 00 protection, and a tin‑plated copper alloy terminal material. The component can withstand soldering temperatures up to 260 °C for 10 seconds and operates within an ambient temperature range of –40 °C to 85 °C.
| Rated Voltage | 250 VAC |
|---|---|
| Rated Current | 16 A (UL) |
| Rated Power Acceptance | 2.5 W / 10 A |
| Dielectric Strength | > 3 kV L‑N |
| Insulation Resistance | > 10 MΩ L‑N |
| Degree of Protection | IP 00 |
| Terminal Material | Tin‑Plated Copper Alloy |
| Ambient Temperature Range | -40 °C to 85 °C |
It is rated for 250 VAC.
The holder is approved for a maximum current of 16 A.
It has an IP 00 protection class.
Store at 0 °C to 60 °C with up to 70 % relative humidity.
