The KKM M is a protective socket with a 2-pole switch and fuse holder. The product has an ultra-compact design, small dimensions, and an electrical rating of 10 A / 250 VAC; 50 Hz, rated voltage UL/CSA 10 A / 250 VAC; 60 Hz.

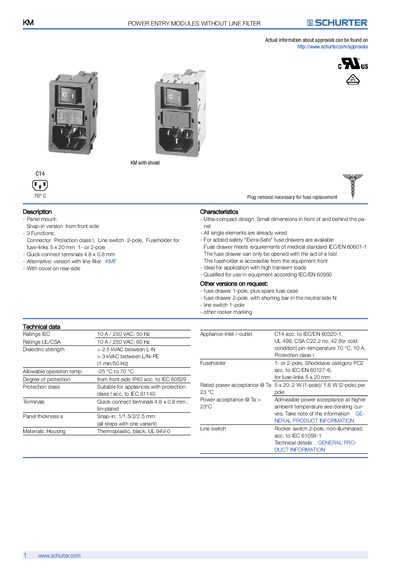

The KM series power entry modules are ultra‑compact, panel‑mount devices designed for equipment requiring a line switch, fuseholder (5 × 20 mm) and optional EMC shield. They feature quick‑connect terminals, a removable fuse drawer for safe replacement, and are qualified for IEC/EN 60950 and IEC/EN 60601‑1 medical standards.
Technical data include a 10 A / 250 VAC rating, dielectric strength up to 3 kVAC, operating temperature from –25 °C to 70 °C, IP40 protection, and a tin‑plated terminal size of 4.8 × 0.8 mm. Various configurations are offered (1‑pole, 2‑pole, with or without shield) and accessories such as extra‑safe fuse drawers are available on request.
| Rated current | 10 A |
|---|---|
| Rated voltage | 250 VAC |
| Dielectric strength L‑N | >2.5 kVAC |
| Operating temperature range | -25 °C to 70 °C |
| Degree of protection | IP40 |
| Terminal size | 4.8 × 0.8 mm tin‑plated |
They are rated for 10 A at 250 VAC.
The modules can operate from –25 °C up to 70 °C.
The fuse drawer must be ordered separately.
The dielectric strength between L and N is greater than 2.5 kVAC.
