This document introduces the FFUUPP fuseholder, which is suitable for high currents and has a horizontal style installation. It complies with the standards IEC 60127-6, UL 512, and CSA C22.2 no. 39. It has VDE certification and UL file number. The rated voltage is 250VAC, and the rated current is 16A (VDE) and 30A (UL/CSA). It is suitable for appliances with protection class I or II according to IEC 61140. The operating temperature range is -40°C to 85°C.

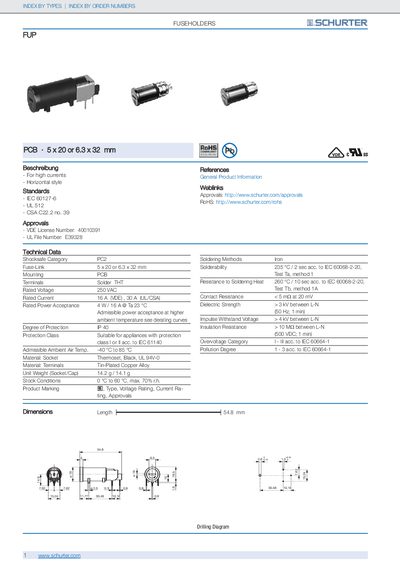

This document provides the derating curves, technical data, and approval information for SCHURTER's FUP series PCB fuse holders. It includes details such as rated current, voltage, temperature limits, material composition, and protection class.
Additional sections list the dimensions, mounting methods, weight, and packaging options, as well as the applicable standards (IEC, UL, CSA) and VDE/UL approvals. The derating curves illustrate how the allowable current changes with ambient temperature.
| Rated Current | 16 A (WDE), 30 A (UL/CSA) |
|---|---|
| Rated Voltage | 250 VAC |
| Impulse Withstand Voltage | > 4 kV between L‑N |
| Degree of Protection | IP 40 |
| Insulation Resistance | > 10 MΩ between L‑N (500 VDC, 1 min) |
| Ambient Temperature Range | -40 °C to 85 °C |
| Socket Material | Thermoset, Black, UL 94‑0 |
| Terminal Material | Tin‑Plated Copper Alloy |
| Unit Weight (Socket/Cap) | 14.2 g / 14.1 g |
| Length | 54.8 mm |
It complies with IEC 60127‑6, UL 512 and CSA 622.2 no. 39.
The rated voltage is 250 VAC.
The fuse holder has an IP 40 protection class.
It can operate from –40 °C up to 85 °C.
