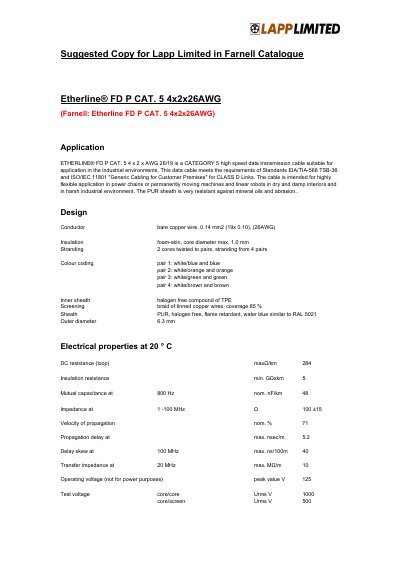

The Etherline® FD P CAT.5 4 × 2 × 26AWG cable is a Category 5 high‑speed data transmission cable designed for industrial environments, including power chains, moving machines and linear robots. It meets EIA/TIA‑568, TSB‑36 and ISO/IEC 11801 standards for Class D links and features a PUR, halogen‑free sheath resistant to mineral oils and abrasion.
The cable consists of four twisted‑pair conductors (bare copper, 0.14 mm², 26 AWG) with foam‑skin insulation and a halogen‑free PUR outer sheath. Electrical characteristics include a DC loop resistance of 284 Ω/km, insulation resistance ≥5 GΩ·km, and a velocity of propagation of 71 %. Mechanical data specify a minimum flexible bending radius of 95 mm and operating temperature ranges of –5 °C to 50 °C (flexible) and –40 °C to 70 °C (static).
| Conductor material | bare copper wire, 0.14 mm² (26 AWG) |
|---|---|
| Insulation type | foam‑skin, core diameter max. 1.0 mm |
| Stranding | 2 cores twisted to pairs, 4 pairs total |
| Outer sheath | PUR, halogen free, flame retardant |
| Outer diameter | 6.3 mm |
| DC resistance (loop) max | 284 Ω/km |
| Insulation resistance min | 5 GΩ·km |
| Mutual capacitance (800 Hz) | 48 nF/km |
| Impedance (1‑100 MHz) | 100 Ω ±15 |
| Velocity of propagation | 71 % |
| Propagation delay max | 5.2 nsec/m |
| Delay skew (100 MHz) max | 40 ns/100 m |
| Transfer impedance (20 MHz) max | 10 MΩ/m |
| Operating voltage (peak) | 125 V |
| Test voltage core/core (Urms) | 1000 V |
| Test voltage core/screen (Urms) | 500 V |
| Minimum bending radius (flexible) | 95 mm |
| Permissible temperature range (flexible) | -5 °C to 50 °C |
| Permissible temperature range (static) | -40 °C to 70 °C |
| Flame propagation rating | IEC 60332‑1 |
The outer diameter is 6.3 mm.
The DC loop resistance is 284 Ω per kilometre.
When flexed, it can operate from –5 °C to 50 °C.
Yes, the sheath is made of PUR and is halogen free.
