The document provides detailed information about SKINDICHT® accessories, including part numbers, sizes, materials, and temperature ranges.

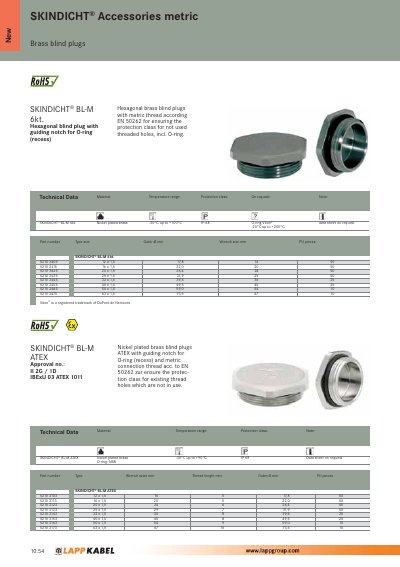

The SKINDICHT BL-M 6kt series provides metric brass blind plugs for unused threaded holes. Each plug features a guiding notch for an O‑ring recess and a metric thread that complies with EN 50262, ensuring the required protection class.
The plugs are made of nickel‑plated brass, operate from –30 °C to +100 °C, and have an IP68 protection rating. The O‑ring is Viton® with a temperature range of –20 °C to +200 °C. ATEX approval is granted (II 2G / 1D IBExU 03 ATEX 101 1). Various sizes are offered, e.g., 12 × 1.5 mm, 16 × 1.5 mm, up to 63 × 1.5 mm.
| Material | Nickel plated brass |
|---|---|
| Temperature range (plug) | -30°C to +100°C |
| O‑ring material | Viton® |
| O‑ring temperature range | -20°C to +200°C |
| Thread standard | EN 50262 |
They are made of nickel‑plated brass.
The plugs can be used from –30 °C up to +100 °C.
The O‑ring is made of Viton®.
Yes, they have ATEX approval No. II 2G / 1D IBExU 03 ATEX 101 1.
