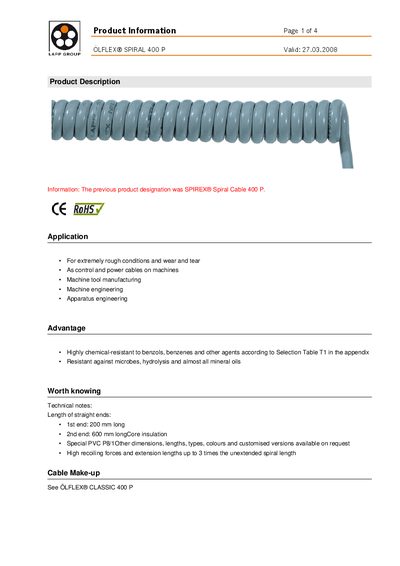

ÖLFLEX® SPIRAL 400 P is a highly durable spiral cable with very high chemical resistance and wear resistance. It can be used for machines, machine tool manufacturing, mechanical engineering and apparatus engineering. The cable's straight ends are 200 mm and 600 mm long, and other sizes, lengths, types, colours and custom versions are available on request.
The OLFLEX® SPIRAL 400 P is a flexible spiral cable designed for extremely rough conditions, wear and tear, and as control and power cables on machines in machine‑tool, engineering and apparatus applications. It offers high chemical resistance to benzols, benzenes, microbes, hydrolysis and most mineral oils, with high recoiling forces and extension lengths up to three times the unextended length.
Technical data include a rated voltage of 300/500 V, specific insulation resistance greater than 20 GΩ·cm, test voltage of 3000 V, operating temperature range from +5 °C to +50 °C, and a fine‑wire conductor stranding according to VDE standards. The cable is available in various sizes and configurations as listed in the article table.
| Rated voltage | U0/U=300/500 V |
|---|---|
| Specific insulation resistance | > 20 GOhm·cm |
| Test voltage | 3000 V |
| Operating temperature range | +5 °C to +50 °C |
| Core identification | Black cores with white numbers |
| Conductor stranding | Fine wire (VDE 0295, Cl. 5) |
The previous product designation was SPIREX® Spiral Cable 400 P.
The specific insulation resistance is greater than 20 GΩ·cm.
The rated voltage is U0/U = 300/500 V.
