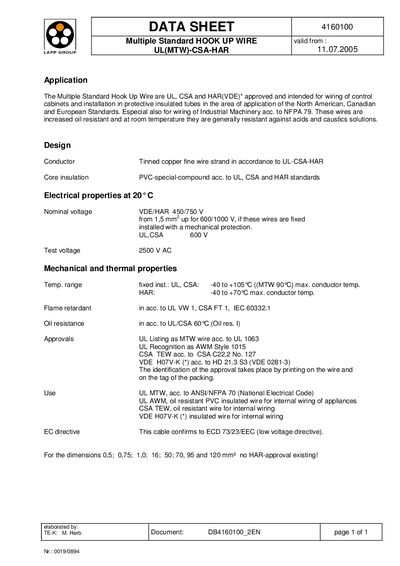

This data sheet introduces the characteristics and specifications of the multiple standard series of connection wires, including application scenarios, conductors, insulation materials, electrical performance, mechanical performance, thermal performance, flame retardant performance, oil resistance performance, certification, etc.
The Multiple Standard Hook Up Wire is UL, CSA and HAR (VDE) approved for wiring control cabinets and protective insulated tubes in North American, Canadian and European applications, including industrial machinery per NFPA 79. The wire features tinned copper conductors and a PVC‑special‑compound insulation meeting UL‑CSA‑HAR standards.
Electrical properties include a nominal voltage of 450/750 V (VDE/HAR) and a test voltage of 2500 V AC. Mechanical and thermal limits are –40 °C to +105 °C for UL/CSA and –40 °C to +70 °C for HAR, with flame‑retardant compliance (UL VW 1, CSAFT 1, IEC 60332.1) and oil resistance up to 60 °C. Approvals are listed as UL MTW (UL 1063), UL AWM (Style 1015), CSA TEW (C22.2 No. 127) and VDE H07V‑K.
| Nominal voltage | 450/750 V |
|---|---|
| Test voltage | 2500 V AC |
| Temperature range (UL/CSA) | -40 to +105 °C |
| Temperature range (HAR) | -40 to +70 °C |
| Flame retardant standard | UL VW 1, CSAFT 1, IEC 60332.1 |
It is approved to UL, CSA and HAR (VDE) standards, including UL MTW, UL AWM, CSA TEW and VDE H07V‑K.
The nominal voltage is 450 V / 750 V according to VDE/HAR specifications.
It can operate from –40 °C up to +105 °C when installed with mechanical protection.
Yes, it is oil‑resistant up to 60 °C according to UL/CSA specifications.
