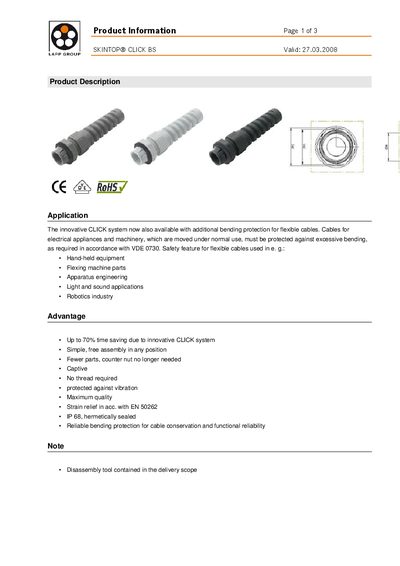

SKINTOP® CLICK BS is an innovative connection system which provides additional bending protection for flexible cables.
The SKINTOP CLICK BS is a flexible cable with built‑in bending protection, designed for use in hand‑held equipment, flexing machine parts, apparatus engineering, light‑ and sound applications, and the robotics industry. The innovative CLICK system enables free assembly in any position, reduces part count and saves up to 70 % of installation time.
Technical data include VDE approvals, IP68‑5 bar protection, operation from –20 °C to +100 °C, a special polyamide body with a special elastomer seal, and colour options in RAL 7001, RAL 7035 and RAL 9005. Detailed dimensions for sizes M12, M16, M20, M25 and M32 are listed in the article table.
| IP rating | IP68 - 5 bar |
|---|---|
| Operating temperature range | -20 °C to +100 °C |
| Body material | special polyamide |
| Seal material | special elastomer |
| Approvals | VDE approval for sizes M12 and M32 (in preparation) |
| Colour options | RAL 7001 silver‑grey, RAL 7035 light grey, RAL 9005 black / UV resistant |
It has an IP68 rating and can withstand 5 bar pressure.
The cable is rated for temperatures from –20 °C up to +100 °C.
It is intended for hand‑held equipment, flexing machine parts, apparatus engineering, light and sound applications, and the robotics industry.
