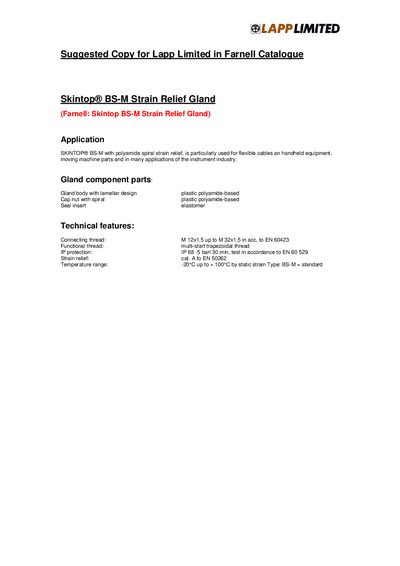

SKINTOP® BS-M with polyamide spiral strain relief is particularly used for flexible cables and handheld equipment, moving machine parts, and many applications in the instrument industry.
The Skintop® BS-M strain relief gland from Lapp is designed for flexible cables in handheld equipment, moving machine parts, and many instrument‑industry applications. Its polyamide spiral design offers reliable strain relief for demanding environments.
Technical features include a connecting thread of M 12×1.5 up to M 32×1.5 (according to EN 60423), a multi‑start trapezoidal functional thread, IP68 protection (‑5 bar for 30 min), strain‑relief class A (EN 50262), and an operating temperature range from –20 °C to +100 °C.
| Connecting thread | M 12x1.5 up to M 32x1.5 (EN 60423) |
|---|---|
| Functional thread | Multi‑start trapezoidal thread |
| IP protection | IP68 –5 bar for 30 min |
| Strain relief class | Category A (EN 50262) |
| Temperature range | -20 °C to +100 °C (static strain) |
It operates from –20 °C up to +100 °C under static strain.
It has an IP68 rating, tested to –5 bar for 30 minutes.
The connecting thread is M 12×1.5 up to M 32×1.5, and it uses a multi‑start trapezoidal functional thread.
