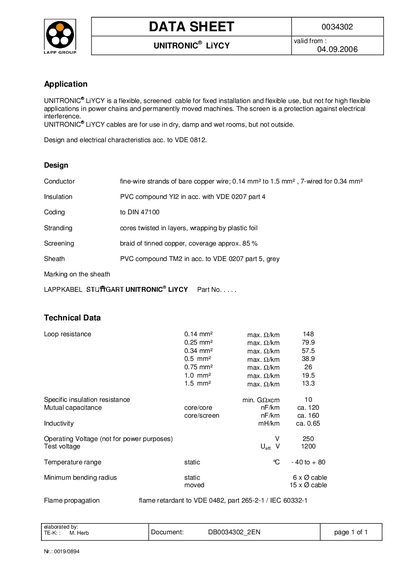

UNITRONIC® LiYCY is a flexible, screened cable for fixed installation and flexible use, but not for high flexible applications in power chains and permanently moved machines. The screen is a protection against electrical interference. UNITRONIC® LiYCY cables are for use in dry, damp and wet rooms, but not outside.
The UNITRONIC® LiYCY cable is a flexible, screened cable intended for fixed installation and flexible use, suitable for dry, damp and wet rooms but not for outdoor or high‑flex applications. The screen offers protection against electrical interference.
The cable features copper conductors with PVC insulation, a tinned‑copper braid screen (≈85% coverage), and a PVC sheath. Technical data include loop resistance, insulation resistance, capacitance, inductivity, operating voltage, test voltage, temperature range, bending radius, and flame‑retardant compliance.
| Loop resistance 0.14 mm² | 148 Q/km |
|---|---|
| Loop resistance 0.25 mm² | 79.9 Q/km |
| Loop resistance 0.34 mm² | 57.5 Q/km |
| Loop resistance 0.5 mm² | 38.9 Q/km |
| Loop resistance 0.75 mm² | 26 Q/km |
| Loop resistance 1.0 mm² | 19.5 Q/km |
| Loop resistance 1.5 mm² | 13.3 Q/km |
| Specific insulation resistance | ≥10 GΩ·cm |
| Mutual capacitance (core/core) | ≈120 nF/km |
| Capacitance (core/screen) | ≈160 nF/km |
| Inductivity | ≈0.65 mH/km |
| Operating voltage (not for power) | 250 V |
| Test voltage | 1200 V |
| Temperature range (static) | -40 °C to +80 °C |
| Minimum bending radius (static) | 6× cable diameter |
| Bending radius when moved | 15× cable diameter |
| Flame propagation rating | VDE 0482 part 265‑2‑1 / IEC 60332‑1 |
It is a flexible, screened cable for fixed installation and flexible use, intended for dry, damp and wet rooms but not for outdoor or high‑flex applications.
The cable is rated for an operating voltage of 250 V (not for power purposes).
It can be used in temperatures from –40 °C up to +80 °C.
