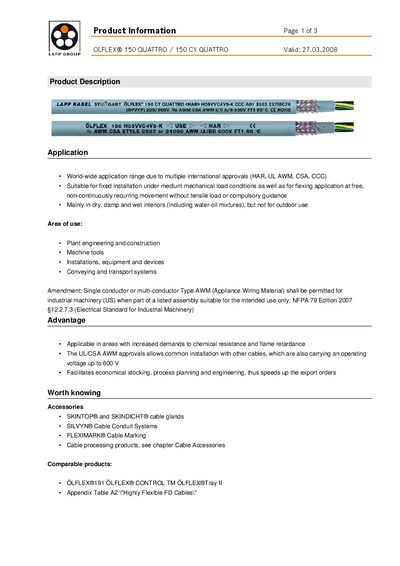

ÖLFLEX® 150 QUATTRO / 150 CY QUATTRO is a cable suitable for fixed installation and flexing applications, with multiple international certifications. It is suitable for dry, damp, and wet interiors, and has chemical resistance and flame retardant properties.
The OLFLEX® 150 QUATTRO / 150 CY QUATTRO is a highly flexible cable from LAPP GROUP designed for fixed installations under medium mechanical load and for flexing applications without tensile load. It is suitable for dry, damp and wet interiors, including water‑oil mixtures, and is used in plant engineering, machine tools, conveying and transport systems.
The cable meets multiple international approvals (HAR, UL AWM, CSA, CCC) and offers flame‑retardant performance, high insulation resistance, and a wide temperature range. Technical details such as conductor stranding, bending radius, rated voltage and temperature limits are provided for both HAR and UL/CSA standards.
| Flame retardant | IEC 60332-1-2 UL 1581 §1061 |
|---|---|
| Specific insulation resistance | > 20 GΩ·cm |
| Conductor stranding | Fine wire per VDE 0295 KI.5 IEC 60228 CI.5 |
| Minimum bending radius (flexing) | 20 × cable diameter |
| Minimum bending radius (static) | 6 × cable diameter |
| Rated voltage (HAR) | 300/500 V |
| Rated voltage (UL/CSA) | 600 V |
| Test voltage | 3000 V |
| Operating temperature (occasional flexing, HAR) | -5 °C to +70 °C |
| Operating temperature (occasional flexing, UL/CSA) | -5 °C to +90 °C |
| Operating temperature (fixed installation, HAR) | -40 °C to +70 °C |
It is approved for HAR, UL AWM, CSA and CCC standards.
No, it is not intended for outdoor use.
SKINTOP® and SKINDICHT® cable glands, SILVYN® Cable Conduit Systems, FLEXIMARK® Cable Marking and other cable processing products.
The static minimum bending radius is 6 times the cable diameter.
