This document introduces a network adapter plug available on lumberg.com, which features a straight design, solder eyes, and kink protection. It is suitable for a temperature range of -20°C to +70°C and is made of PC, CuZn, and POM materials. The plug has an outer diameter of 4.0mm, an inner diameter of 1.7mm, and can be mated with power supply sockets 1613 04 and 1613 05. It has a nominal power of 2A, a nominal voltage of 6.3V DC, and insulation resistance greater than or equal to 108Ω.

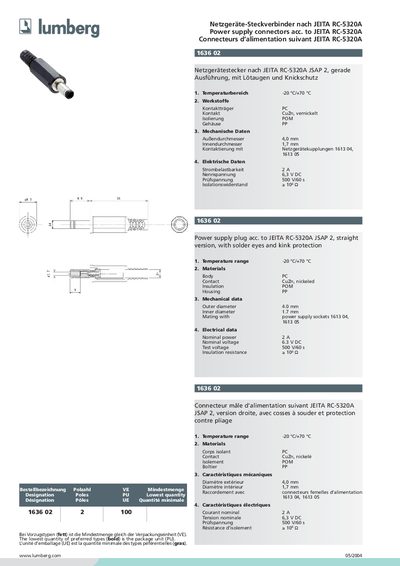

The Lumberg 1636 02 is a male power‑supply connector compliant with JEITA RC‑5320A (JSAP 2) and features solder eyes and kink protection. It is intended for use with matching female sockets 1613 04 and 1613 05.
Key specifications include a temperature range of –20 °C to +70 °C, a body made of Pc, contacts of CuZn nickel‑plated, POM insulation and PP housing, an outer diameter of 4.0 mm, inner diameter of 1.7 mm, a nominal current of 2 A, nominal voltage of 6.3 V DC, test voltage of 500 V for 60 s, and an insulation resistance of 10⁸ Ω. This manual is written in German.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Body material | Pc |
| Contact material | CuZn, nickel‑plated |
| Insulation material | POM |
| Housing material | PP |
| Outer diameter | 4.0 mm |
| Inner diameter | 1.7 mm |
| Nominal voltage | 6.3 V DC |
| Test voltage | 500 V for 60 s |
| Insulation resistance | 10⁸ Ω |
It can operate from –20 °C up to +70 °C.
The outer diameter is 4.0 mm and the inner diameter is 1.7 mm.
It complies with JEITA RC‑5320A (JSAP 2).
