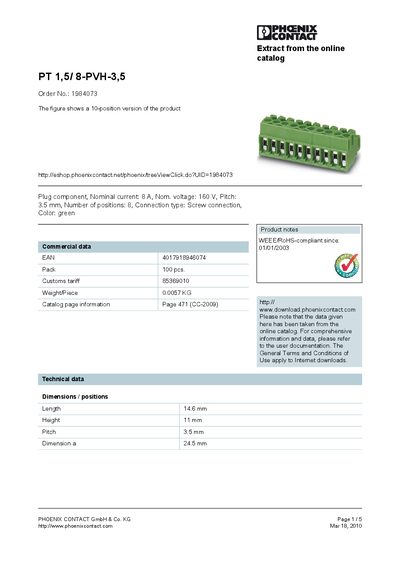

PT 1,5 / 8-PVH-3,5 is a 8-way connector from PHOENIX CONTACT with a rated current of 8A and a rated voltage of 160V. The connection type is screw connection and the color is green.
The PT 1.5/8-PVH-3.5 is an 8‑position screw‑connection terminal block with a 3.5 mm pitch. It is designed for a nominal current of 8 A and a nominal voltage of 160 V, and complies with RoHS and WEEE regulations.
The sheet provides detailed mechanical dimensions, electrical ratings, tightening torque values, certification information (CCA, CUL, SEV, UL) and a list of accessories such as headers, marker cards and compatible screwdrivers. Contact details for Phoenix Contact are also included.
| Nominal current | 8 A |
|---|---|
| Pitch | 3.5 mm |
| Number of positions | 8 |
| Length | 14.6 mm |
| Height | 11 mm |
| Weight per piece | 0.0057 kg |
The terminal block is rated for a nominal current of 8 A.
It provides 8 positions for connections.
The pitch is 3.5 mm.
It is certified CCA, CUL, SEV and UL.
