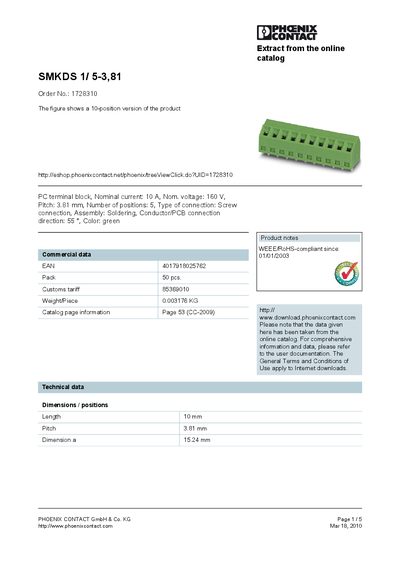

This is a SMKDS 1/ 5-3,81 type PC terminal block produced by PHOENIX CONTACT GmbH & Co. KG. The rated current of this module is 10 A, the rated voltage is 160 V, the pitch is 3.81 mm, the positioning direction is 55 °, and the color is green.
The SMKDS 1/5-3,81 is a 5‑position screw‑connection terminal block with a 3.81 mm pitch, rated for 10 A and 160 V. The handbook lists its physical dimensions, weight, and compliance information, as well as detailed connection data for various conductor sizes.
Additional sections cover available accessories such as marker pens, marker cards, and a screwdriver, along with certification listings (CB, CCA, CSA, CUL, GOST, SEV, UL) and ordering information. The document concludes with the manufacturer's contact details.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 5 |
| Length | 10 mm |
| Weight per piece | 0.003176 kg |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 10 A.
It has five positions.
Accessories include a marker pen for manual labeling, marker cards (self‑adhesive), and a bladed screwdriver for installation.
It is certified according to CB, CCA, CSA, CUL, GOST, SEV, and UL standards.
