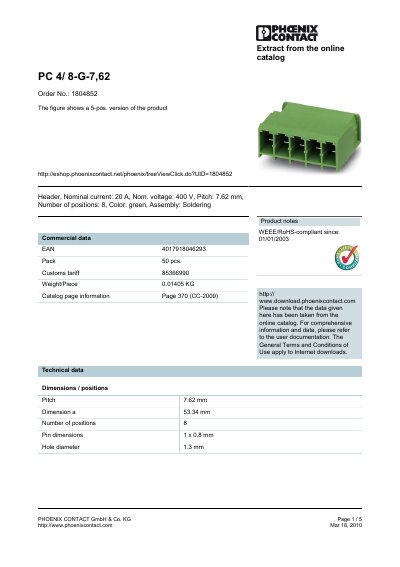

The PC 4/ 8-G-7,62 is a connector produced by PHOENIX CONTACT. It has a rated current of 20A, a rated voltage of 400V, a pitch of 7.62mm, 8 pins, a green color and is soldered.
The PC 4/8-G-7,62 is an 8‑position terminal block with a 7.62 mm pitch, rated for 20 A and 400 V. It features a green housing, solder‑type connection, and complies with WEEE/RoHS standards. Technical data include nominal current, voltage ratings, surge voltage, and insulating material specifications.
The document lists compatible accessories such as mounting flanges, marker pens, and coding profiles, as well as related plug components with higher voltage ratings. Certification information (BV, CSA, CUL, etc.) and a derating curve diagram are also provided.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 400 V |
| Rated voltage (III/2) | 630 V |
| Rated surge voltage (III/3) | 6 kV |
| Pitch | 7.62 mm |
| Number of positions | 8 |
| Color | green |
| Weight per piece | 0.01405 KG |
| Insulating material group | I |
| Certificates / Approvals | BV, CSA, CUL, DNV, GL, GOST, LR, RS, UL |
The nominal current rating is 20 A.
The pitch is 7.62 mm.
It has 8 positions.
Yes, it is WEEE/RoHS‑compliant since 01/01/2003.
