ICV 2,5/ 6-G-5,08 is a connector product produced by PHOENIX CONTACT company. The rated current of this connector is 12A, the rated voltage is 320V, the pitch is 5.08mm, and there are 6 connection points. The color is green and it can be installed by soldering.
The ICV 2,5/6-G-5,08 is a green‑colored, 6‑position DIN‑rail or solderable header connector rated for 12 A nominal current and 320 V nominal voltage. It features a 5.08 mm pitch, compact dimensions (10.2 mm length, 25.4 mm width) and complies with RoHS and WEEE regulations.

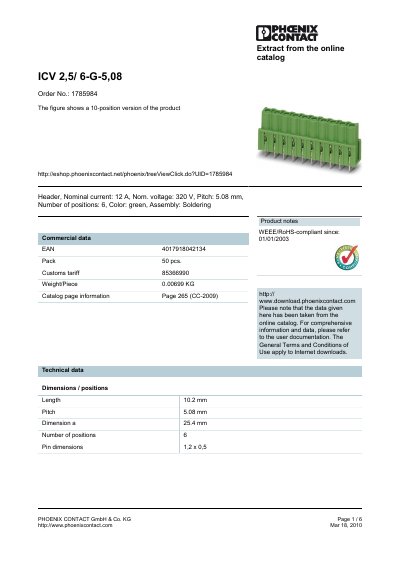

The datasheet lists a range of accessories such as guide rails, keying profiles and base strips, and provides certification information (CB, CSA, CUL, GOST, UL, VDE‑PZI). Commercial details include the EAN 4017918042134, pack size of 50 pcs, and a weight of 0.00699 kg per piece.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 320 V |
| Pitch | 5.08 mm |
| Number of positions | 6 |
| Weight per piece | 0.00699 kg |
| Certifications | CB, CSA, CUL, GOST, UL, VDE‑PZI |
The connector is rated for a nominal current of 12 A.
It has a nominal voltage rating of 320 V.
The connector provides 6 positions.
The pitch is 5.08 mm.
