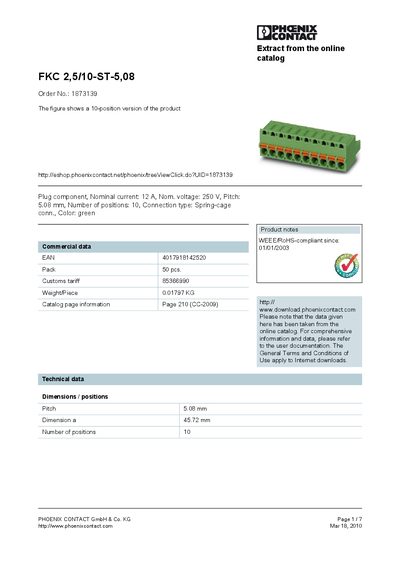

This document is the data sheet of FKC 2,5/10-ST-5,08. It contains the product's model, color, rated current, rated voltage, tolerance, package size, net weight, gross weight and volume.
The FKC 2,5/10-ST-5,08 is a 10‑position plug component terminal block with a 5.08 mm pitch, rated for 12 A and 250 V, and supplied in a green housing. It features a spring‑cage connection type and complies with WEEE/RoHS regulations.
The handbook lists detailed technical specifications, dimensions, certification approvals (CUL, UL, VDE‑PZI, etc.), and a range of accessories such as strain‑relief parts, marker cards, and insulating sleeves. Ordering information, part numbers, and a dimensioned drawing are also included.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 10 |
| Connection type | Spring‑cage |
| Color | green |
| Weight per piece | 0.01797 kg |
| EAN | 4017918142520 |
| RoHS compliance date | 01/01/2003 |
| Dimension a | 45.72 mm |
The terminal block is rated for a nominal current of 12 A.
The pitch of the device is 5.08 mm.
It provides 10 positions.
Yes, it has been RoHS‑compliant since 01/01/2003.
