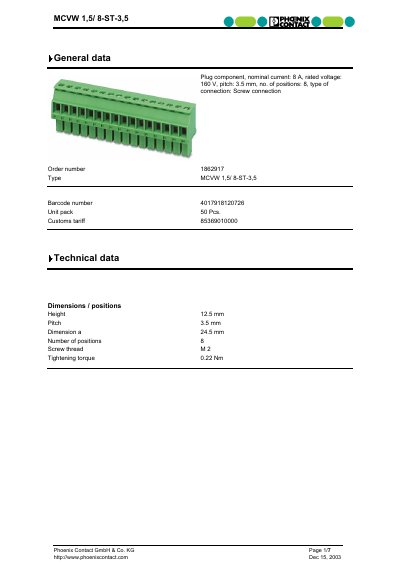

This document introduces a plug component called MCVW 1,5/8-ST-3,5, which has a nominal current of 8A and a rated voltage of 160V. The component uses a screw connection and has 8 positions with a pitch of 3.5mm. It is suitable for connecting wires with a maximum cross section of 1.5mm² and has a rated surge voltage of 2.5kV.
The MCVW 1,5/8-ST-3,5 is an 8‑position plug component with a screw connection, nominal current of 8 A and rated voltage of 160 V. Its key dimensions are a height of 12.5 mm, a pitch of 3.5 mm and a width of 24.5 mm. The component uses PA insulating material and complies with UL 94 V0 flammability class.
The leaflet also lists compatible accessories such as marker pens, marker cards and a screwdriver, and provides certification details (UL, CUL) and a dimensioned drawing. Additional related header products are referenced, and the document ends with Phoenix Contact's contact information.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 8 |
| Height | 12.5 mm |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
| Tightening torque | 0.22 Nm |
The nominal current is 8 A.
It has 8 positions.
The rated voltage is 160 V.
A tightening torque of 0.22 Nm is required.
