FRONT 2,5-H/SA 5/ 8 is a terminal block produced by PHOENIX CONTACT. The nominal current is 24A, the nominal voltage is 250V, the pitch is 5mm, the connection type is screw connection, the assembly type is soldering, the conductor/PCB connection direction is 0°, the color is green, and the product can be aligned according to different positions.
The FRONT 2,5-H/SA 5/8 is a green, screw‑connection terminal block with a 5 mm pitch and eight positions. It is rated for a nominal current of 24 A and a nominal voltage of 250 V, and can be assembled by soldering. The unit weighs 0.02954 kg per piece and complies with WEEE/RoHS regulations.

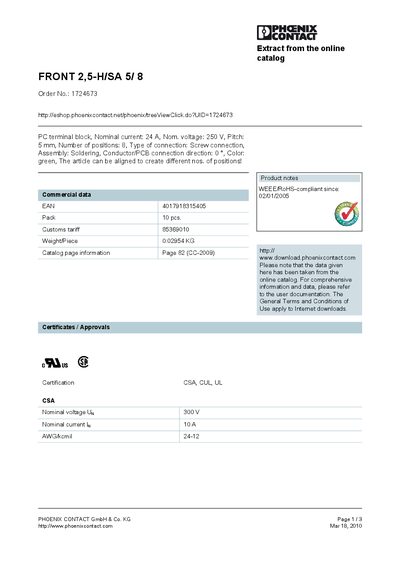

The leaflet lists the available accessories such as end covers, pitch spacers, marker pens, and marker cards, as well as tools like a screwdriver. Certifications include CSA, CUL, and UL. Ordering information, including the order number 1724673 and a link to the Phoenix Contact e‑shop, is provided along with contact details for Phoenix Contact GmbH & Co. KG.
| Nominal current | 24 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 8 |
| Connection type | Screw connection |
| Assembly method | Soldering |
| Color | Green |
| Weight per piece | 0.02954 kg |
The nominal current is 24 A.
It has eight positions.
The product is certified by CSA, CUL, and UL.
The pitch is 5 mm.
