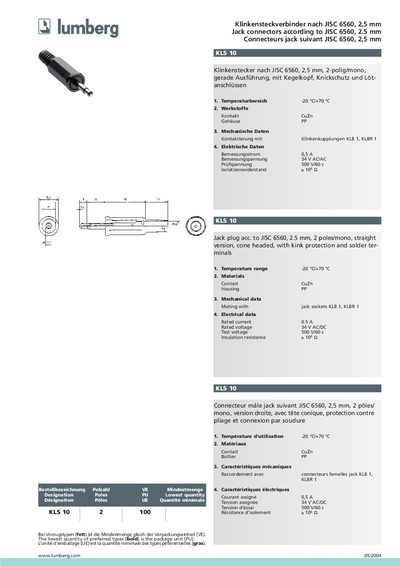

The KLS 10 series jack connector complies with JISC 6560 and features a 2‑pole mono straight version with a cone‑shaped head, kink protection and solder terminals. It is supplied in a packaging unit (PU) with a minimum order quantity equal to one package.
Key characteristics include a temperature operating range of –20 °C to +70 °C, copper‑zinc contacts, a polypropylene housing, and electrical ratings of 0.5 A at 34 V AC/DC, with a test voltage of 500 V at 60 Hz and an insulation resistance of 10⁸ Ω.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Contact material | CuZn |
| Housing material | PP |
| Rated current | 0.5 A |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V / 60 Hz |
| Insulation resistance | 10⁸ Ω |
It can be used from –20 °C up to +70 °C.
The contacts are made of copper‑zinc alloy and the housing is polypropylene.
Rated current is 0.5 A, rated voltage 34 V AC/DC, test voltage 500 V at 60 Hz, and insulation resistance 10⁸ Ω.
The lowest quantity is the package unit (PU).
