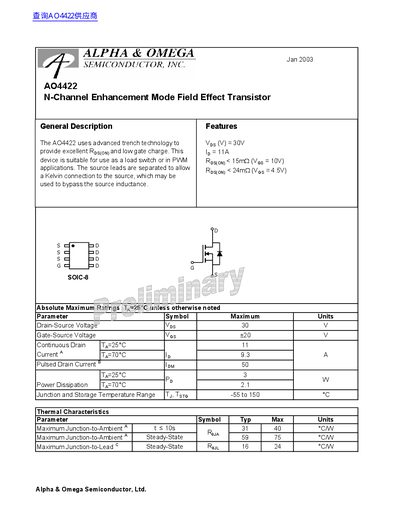

The AO4422 is a N-channel enhancement mode field effect transistor from Alpha & Omega Semiconductor, Ltd. Its maximum drain-source voltage is 30V, and its maximum drain-source current is 11A. Its on-resistance is less than 15mΩ (VGS = 10V) and less than 24mΩ (VGS = 4.5V).
The A04422 is an N‑Channel Enhancement Mode Field Effect Transistor that uses advanced trench technology to deliver low gate charge and high current capability. It is intended for use as a load switch or in power‑voltage‑modulation applications, with source leads that can be Kelvin‑connected to reduce source inductance.
Key specifications include a maximum drain‑source voltage of 30 V, gate‑source voltage rating of +20 V, continuous drain current of 11 A at 25 °C, and a pulsed drain current rating of 50 A. Thermal data show a maximum junction‑to‑ambient temperature of 40 °C and a power dissipation of 2.1 W. Electrical parameters such as input capacitance (Ciss = 1040 pF) and on‑resistance are also provided.
| Drain‑Source Voltage (VDS) | 30 V |
|---|---|
| Gate‑Source Voltage (VGS) | +20 V |
| Continuous Drain Current (Ta=25 °C) | 11 A |
| Pulsed Drain Current (Ta=25 °C) | 50 A |
| Power Dissipation (Ta=0 °C) | 2.1 W |
| Input Capacitance (Ciss) | 1040 pF |
The device can tolerate up to 30 V drain‑source voltage.
The continuous drain current is rated at 11 A when the case temperature is 25 °C.
The input capacitance is specified as 1040 pF.
