AO4615 is a N-channel MOSFET and P-channel MOSFET produced by ON Semiconductor. It has good RDS(ON) and low gate charge characteristics and can be used as a high side switch, as well as other applications.

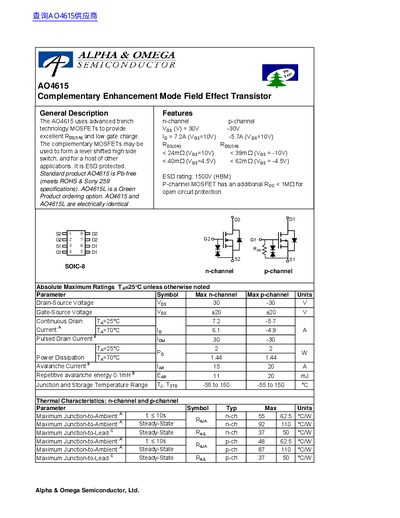

This document describes the Alpha & Omega AO4615 complementary enhancement mode field‑effect transistor, covering both n‑channel and p‑channel MOSFETs. It includes general description, features, and compliance information such as RoHS and ESD protection.
Detailed sections present absolute maximum ratings, electrical parameters, thermal characteristics, and typical performance curves for both channel types, along with notes on measurement conditions and safety warnings.
| Drain‑Source Voltage (Vos) | 30 V (n‑channel) / -30 V (p‑channel) |
|---|---|
| Gate‑Source Voltage (Ves) | ±20 V |
| Continuous Drain Current (Id) | 7.2 A (n‑channel) / 5.7 A (p‑channel) |
| Power Dissipation | 1.44 W |
| ESD Rating | 1500 V (HBM) |
The AO4615 can handle up to 30 V on the n‑channel and –30 V on the p‑channel.
The device is rated for ±20 V gate‑source voltage.
It can conduct 7.2 A continuously on the n‑channel and 5.7 A on the p‑channel.
The MOSFET is rated for 1500 V ESD protection (HBM).
