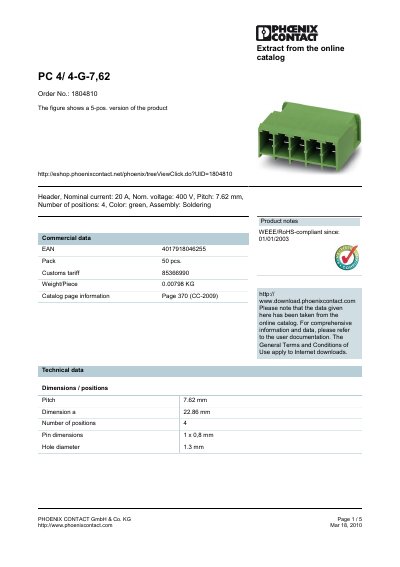

The PC 4/ 4-G-7,62 is a connector from PHOENIX CONTACT. It has a rated current of 20A and a rated voltage of 400V. The pitch between the pins is 7.62mm and the hole diameter is 1.3mm. The product is green in color and is soldered. It is suitable for a variety of electronic and electrical equipment.
The PC 4/4-G-7,62 is a 4‑position, green‑colored terminal block with a 7.62 mm pitch, designed for solder‑type assembly. It is rated for 20 A nominal current and 400 V nominal voltage, with a rated surge voltage of 6 kV and complies with RoHS and WEEE standards.
The document lists accessories such as mounting flanges and marker cards, shows certification approvals (BV, CSA, CUL, DNV, GL, GOST, LR, RS, UL), provides a drilling plan drawing, and includes contact information for Phoenix Contact in Blomberg, Germany.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch (spacing) | 7.62 mm |
| Number of positions | 4 |
| Color | green |
| Assembly type | Soldering |
| Rated surge voltage | 6 kV |
| Insulating material group | I |
| Weight per piece | 0.00798 kg |
| EAN | 4017918046255 |
The nominal current is 20 A.
The pitch is 7.62 mm.
It has 4 positions.
It is certified by BV, CSA, CUL, DNV, GL, GOST, LR, RS, and UL.
