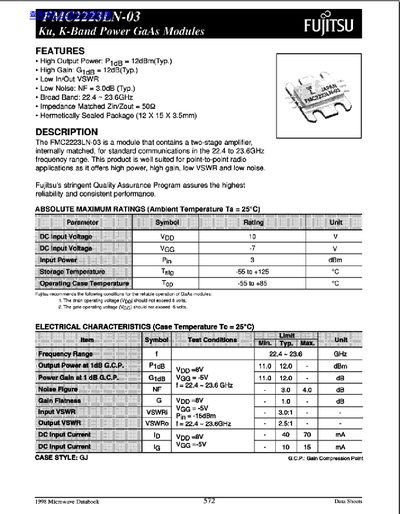

The FMC2223LN-03 module contains a two‑stage internally matched GaAs amplifier designed for standard communications in the 22.4 – 23.6 GHz band. Its high output power, gain, low VSWR and low noise make it suitable for point‑to‑point radio links.
Key specifications include a typical output power of 12 dBm, gain of 12 dB, noise figure of 3 dB, and a hermetically sealed 12 × 15 × 3.5 mm package. The device operates from –55 °C to +85 °C (storage –55 °C to +125 °C) and requires a drain voltage ≤ 4 V and gate voltage ≤ ‑6 V.
| Typical Output Power | 12 dBm |
|---|---|
| Typical Gain | 12 dB |
| Typical Noise Figure | 3.0 dB |
| Frequency Range | 22.4 – 23.6 GHz |
| Impedance | 50 Ω |
| Package Size | 12 × 15 × 3.5 mm |
| Operating Temperature | -55 to +85 °C |
| Storage Temperature | -55 to +125 °C |
| Input Power | -15 dBm |
It operates from 22.4 GHz to 23.6 GHz.
The module provides a typical output power of 12 dBm and a gain of 12 dB.
The typical noise figure is 3.0 dB.
It can operate from –55 °C to +85 °C, with storage allowed from –55 °C to +125 °C.
