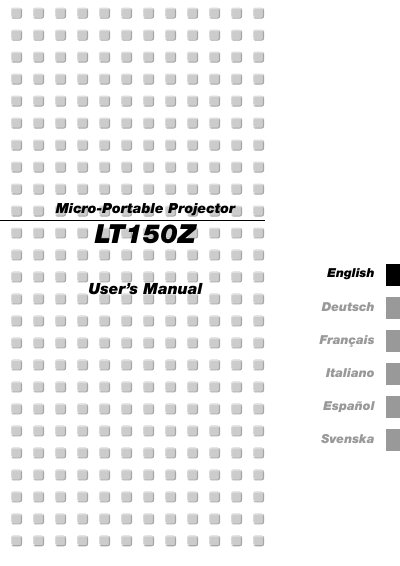

NEC LT150Z Projector User Manual

This document is the user manual for NEC LT150Z projector, it introduces the product's usage methods and precautions.

Brand: NEC
Document type: User Manual
Language: English
Pages: 56
File format: PDF
File size: 2.3 MB
Published: 10 May, 2012
Updated: 30 September, 2023
Model: LT150Z
MD5 checksum: D382C3D7F49FA46A1F9886EE4A09C052
PDF: NEC LT150Z Projector User Manual PDF

About this manual

This manual introduces the NEC LT150Z micro‑portable projector, covering safety precautions, setup, and basic operation. It explains how to install the unit, connect video sources, and use the remote control and built‑in PC Card Viewer.

Detailed sections describe lamp replacement, cleaning, troubleshooting, and provide a full list of supported input signals, resolutions, and electrical requirements. The document also includes PC control codes and wiring diagrams for advanced integration.

What's inside

Introduction
Installation
Operation
Maintenance
Troubleshooting
Specifications
Safety Precautions
Remote Control
PC Card Viewer
Input Signal List

Specifications

Lamp Wattage	135 W NSH lamp
Supported Resolutions	UXGA (1600 × 1200) and SXGA (1280 × 1024)
Horizontal Frequency Range	15 kHz – 100 kHz
Vertical Frequency Range	50 Hz – 120 Hz

Frequently asked questions

Can the LT150Z be mounted on a ceiling?

Yes, but ceiling installation must be performed by qualified technicians and the ceiling must be strong enough to support the projector.

Download PDF (2.3 MB)
