FKC 2,5/ 8-ST-5,08 is a 8-position plug component produced by PHOENIX CONTACT. It has a rated current of 12 A and a rated voltage of 250 V. The connection type is spring-cage.
The FKC 2,5/8-ST-5,08 is a green, 8‑position spring‑cage terminal block with a 5.08 mm pitch, designed for 12 A nominal current and 250 V nominal voltage. It complies with EN‑VDE standards and is RoHS/WEEE‑compliant.

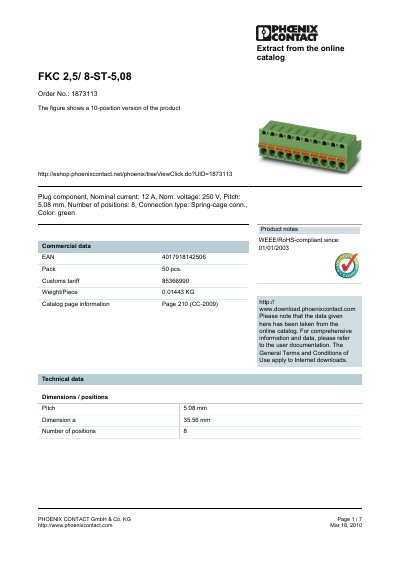

The sheet lists detailed electrical ratings, mechanical dimensions, certification marks (CB, CUL, GOST, UL, VDE‑PZI) and a range of compatible accessories such as strain‑relief parts, insulating sleeves, and various header versions. A dimensioned drawing and contact information for Phoenix Contact are also provided.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 8 |
| Weight per piece | 0.01443 KG |
| EAN | 4017918142506 |
| Rated surge voltage | 4 kV |
| Rated voltage | 320 V |
| Certificates | CB, CUL, GOST, UL, VDE‑PZI |
The terminal block is rated for a nominal current of 12 A.
The pitch is 5.08 mm.
It has 8 positions.
It is certified by CB, CUL, GOST, UL and VDE‑PZI.
