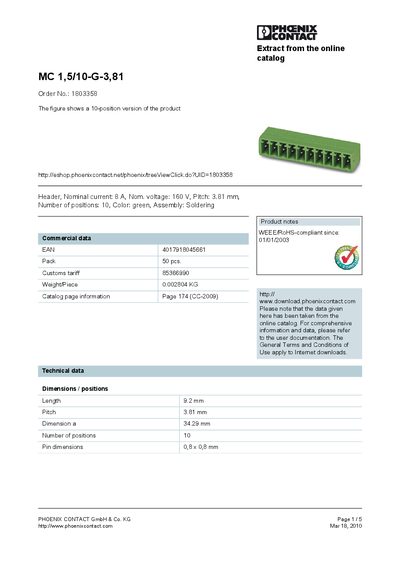

MC 1,5/10-G-3,81 is a 10-pin connector with a nominal current of 8 A and a nominal voltage of 160 V, produced by PHOENIX CONTACT. It is green in color and is installed by soldering.
The MC 1,5/10-G-3,81 is a 10‑position terminal block with a 3.81 mm pitch, rated for 8 A and 160 V. Its compact dimensions (length 9.2 mm, dimension a 34.29 mm) and green‑soldered housing make it suitable for a variety of wiring applications.
The handbook lists compatible accessories such as plug components, marker cards, and keying profiles, and details certifications including CB, CSA, CUL, GOST, UL, and VDE‑PZI. Additional technical data such as weight, pin dimensions, and insulating material are also provided.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 10 |
| Length | 9.2 mm |
| Dimension a | 34.29 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Weight per piece | 0.002804 kg |
| Color | green |
| Assembly | Soldering |
The nominal current rating is 8 A.
It has 10 positions.
The pitch is 3.81 mm.
It is certified by CB, CSA, CUL, GOST, UL, and VDE‑PZI.
