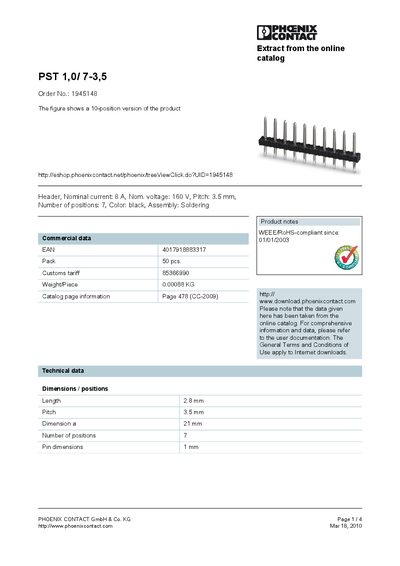

This is a product description file that introduces the characteristics of PHOENIX CONTACT PST 1,0/ 7-3,5, including rated current, rated voltage, pitch, pin dimensions, insulating material group, rated surge voltage, rated voltage, connection method, etc.
The PST 1,0/7-3,5 is a 7‑position, 3.5 mm pitch connector designed for soldering assembly. Key electrical ratings include a nominal current of 8 A (depending on the plug used) and a nominal voltage of 160 V. Mechanical data such as length (2.8 mm), overall dimension (21 mm), and pin size (1 mm) are listed, along with weight per piece (0.00088 kg).
The leaflet also contains commercial details like the EAN code (4017918883317), packaging (50 pcs per pack), and compliance information (WEEE/RoHS‑compliant since 01/01/2003). Contact information for Phoenix Contact GmbH & Co. KG and references to the online catalog are provided for further documentation.
| Pitch | 3.5 mm |
|---|---|
| Number of positions | 7 |
| Length | 2.8 mm |
| Overall dimension (a) | 21 mm |
| Pin dimensions | 1 mm |
| Weight per piece | 0.00088 kg |
| EAN | 4017918883317 |
| WEEE/RoHS compliance date | 01/01/2003 |
The pitch of the connector is 3.5 mm.
It has 7 positions.
