The document describes a general data plug component with a nominal current of 8A, rated voltage of 160V, pitch of 3.5mm, 2 positions, and screw connection type.

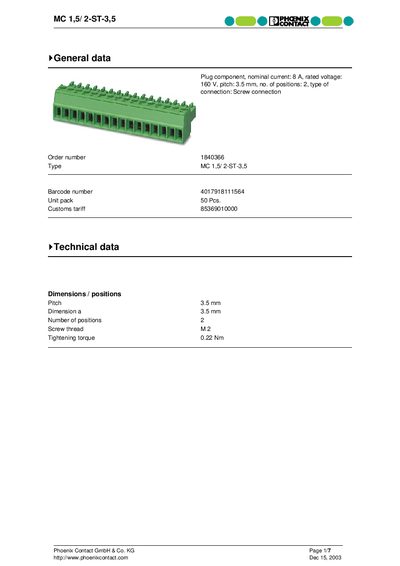

The handbook provides the general data and technical specifications for the MC 1,5/2-ST-3,5 screw‑type terminal block. It lists the nominal current, rated voltage, pitch, number of positions, screw thread size and tightening torque, as well as ordering information such as the order and barcode numbers.
Additional sections include certificates, dimensioned drawings, a list of compatible accessories and tools, related product references, and the manufacturer's contact address.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 2 |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
| Dimension a | 3.5 mm |
| Order number | 1840366 |
| Barcode number | 4017918111564 |
The terminal block is rated for a nominal current of 8 A.
The pitch is 3.5 mm.
It has two positions.
A tightening torque of 0.22 Nm is specified.
