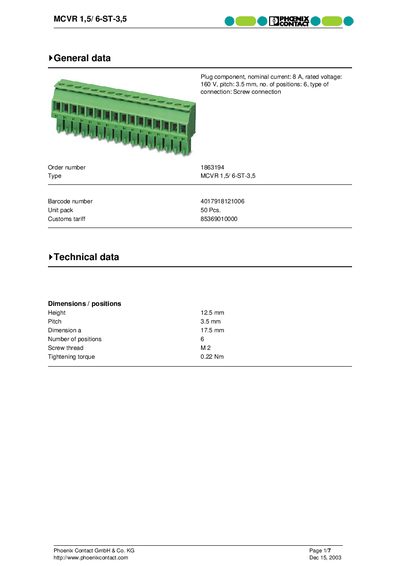

MCVR 1,5/ 6-ST-3,5 is a Phoenix Contact brand of plug component, with a rated current of 8A, a rated voltage of 160V, and a screw connection type. It comes in a pack of 50.
The MCVR 1,5/6-ST-3,5 is a screw‑connection terminal block from Phoenix Contact designed for 8 A nominal current and 160 V rated voltage. It features a 3.5 mm pitch, six positions, and a compact 12.5 mm height, making it suitable for a variety of wiring applications.
The handbook provides detailed technical data, including dimensions, tightening torque, and surge voltage ratings, as well as a list of compatible accessories such as marker pens, marker cards, and a screwdriver. Certification information (UL and CUL) and contact details for Phoenix Contact are also included.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 6 |
| Height | 12.5 mm |
| Tightening torque | 0.22 Nm |
The terminal block is rated for a nominal current of 8 A.
It has a height of 12.5 mm, a pitch of 3.5 mm, and a dimension a of 17.5 mm.
Accessories include a marker pen, various marker cards, and a screwdriver (0.4 × 2.5 mm blade).
The product is certified by UL and CUL with a nominal voltage of 300 V and nominal current of 8 A.
