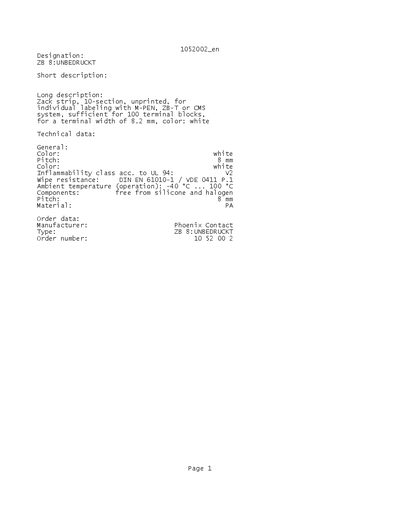

The document describes a product called ZB 8:UNBEDRUCKT, which provides 10 sections for individual labeling with M-PEN, ZB-T or CMS system. It is sufficient for 100 terminal blocks and has a terminal width of 8.2 mm. The color is white.
The ZB 8 UNBEDRUCKT is a white, 10‑section Zack strip designed for individual labeling with M‑PEN, ZB‑T or CMS systems. It fits terminal blocks up to 8.2 mm wide and provides enough length for 100 blocks.
Technical data include an 8 mm pitch, UL‑94 V2 inflammability class, DIN EN 61010‑1 wipe resistance, operation temperature from –40 °C to 100 °C, and a PA material free from silicone and halogen. Order details are Manufacturer: Phoenix Contact, Type: ZB 8: UNBEDRUCKT, Order number: 10 52 00 2.
| Color | white |
|---|---|
| Pitch | 8 mm |
| Inflammability class | UL 94 V2 |
| Wipe resistance | DIN EN 61010-1 / VDE 0411 P.1 |
| Ambient temperature (operation) | -40 °C … 100 °C |
| Components | free from silicone and halogen |
| Material | PA |
| Order number | 10 52 00 2 |
The strip has an 8 mm pitch.
It is white.
It can operate from –40 °C up to 100 °C.
Yes, the material is free from silicone and halogen.
