This document introduces the specifications of the product DFK-PC 5/ 3-G-7,62 from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, number of positions, color, etc. It also provides detailed technical data and connection standards.
The DFK-PC 5/ 3-G-7,62 is a 3‑position, green‑colored connector with a 7.62 mm pitch, designed for soldering assembly. It is rated for a nominal current of 41 A and a nominal voltage of 500 V, with additional surge voltage ratings for various insulation classes.

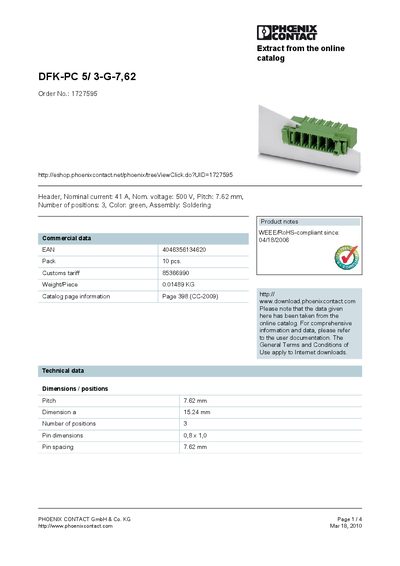

The datasheet lists detailed technical data such as pin dimensions, hole diameter, weight, packaging, and compliance information (RoHS‑compliant since 04/18/2006, UL‑94 V0). It also includes drawing references, drilling plans, and sheet‑metal cutout details for both snap‑on and screw‑connection mounting.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 3 |
| Color | green |
| Assembly method | Soldering |
| Rated voltage (III/2) | 630 V |
| Rated voltage (II/2) | 800 V |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
| Weight per piece | 0.01489 KG |
| EAN | 4046356134620 |
| Hole diameter | 1.3 mm |
The connector is rated for a nominal current of 41 A.
It has three positions.
The pitch is 7.62 mm.
Yes, it has been RoHS‑compliant since 04/18/2006.
