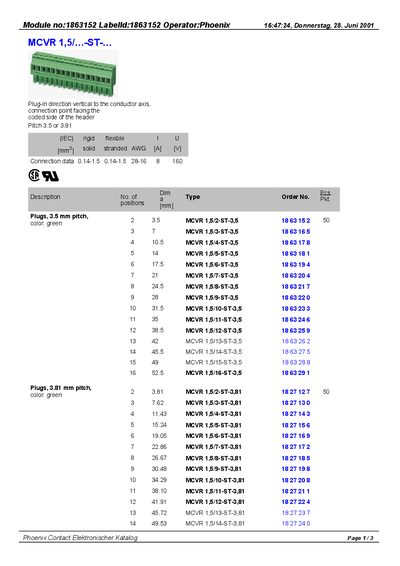

MCVR 1,5/…-ST-… Plugs, plug-in direction vertical to the conductor axis, connection point facing the coded side of the header
This handbook describes the MCVR 1.5 series plug‑in modules offered by Phoenix Contact. It lists the available pitch sizes, colour, number of positions, and provides ordering numbers for each variant. Technical data such as dimensions, insulation material, rated voltage and current, and approval information (UL, CSA) are included.
The document also contains accessory details (screwdriver, marker card) and notes on proper handling, for example that MINI‑COMBICON plug connectors should only be actuated under no‑load conditions. Ambient temperature effects on current capacity are summarized as well. This manual is written in German.
| Pitch | 3.5 mm or 3.81 mm |
|---|---|
| Colour | green |
| Positions (3.5 mm pitch) | 11‑15 |
| Positions (3.81 mm pitch) | 10‑14 |
| Module length increments | 3.5 mm, 7 mm, 10.5 mm, 14 mm, 17.5 mm, 21 mm, 24.5 mm, 28 mm, 31.5 mm, 35 mm, 38.5 mm, 42 mm, 45.5 mm, 49 mm, 52.5 mm |
| Accessories included | Screwdriver (0.4 × 2.5 × 80 mm, length 160 mm) and marker card |
| Approval | UL and CSA listed |
The series is offered with a pitch of either 3.5 mm or 3.81 mm.
All modules are supplied in green.
A screwdriver (0.4 × 2.5 × 80 mm, 160 mm length) and a marker card with 14 positions are provided.
Only under no‑load conditions; for small loads experimental values are available on request.
