MC 1,5/ 8-G-3,81 THT is a connector produced by PHOENIX CONTACT company. It has a rated current of 8A, a rated voltage of 160V, a pitch of 3.81mm, a pin size of 0.8 x 0.8mm, and is black. It can be assembled using SMD/THT/THR.
The MC 1,5/8-G-3,81 THT is a green‑colored, 8‑position terminal block designed for 8 A nominal current and 160 V nominal voltage. It features a 3.81 mm pitch and is available for both SMD and THT assembly.

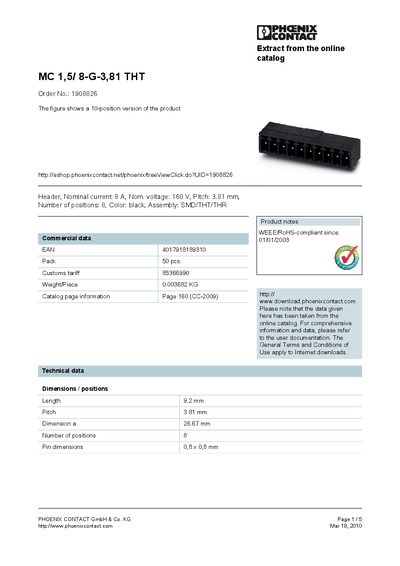

The sheet provides full mechanical dimensions, electrical ratings, certification information and ordering numbers. For complete product documentation, refer to Phoenix Contact’s online catalog or user manuals.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 8 |
| Length | 9.2 mm |
| Dimension a | 26.67 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Weight per piece | 0.003682 kg |
| WEEE/RoHS compliance date | 01/01/2003 |
| Certifications | CB, CUL, GOST, UL, VDE‑PZI |
The terminal block is rated for a nominal current of 8 A.
It provides 8 positions for connections.
The pitch between contacts is 3.81 mm.
The order number is 1908826.
