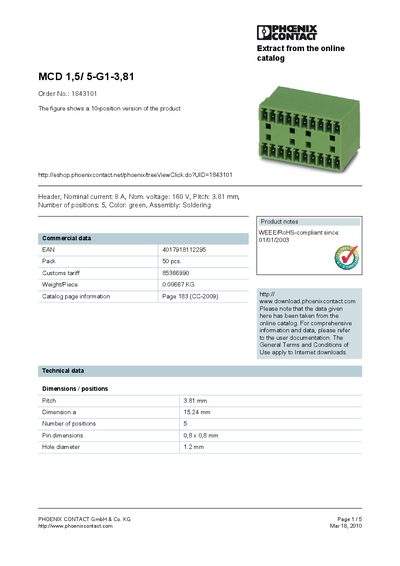

MCD 1,5/ 5-G1-3,81 is a connector produced by PHOENIX CONTACT. Its rated current is 8 A, rated voltage is 160 V, pitch is 3.81 mm, number of positions is 5, color is green, and assembly is soldering.
The MCD 1,5/5-G1-3,81 is a 5‑position green terminal block with a 3.81 mm pitch, designed for soldering assembly. It is rated for 8 A nominal current and 160 V nominal voltage, and complies with RoHS/WEEE regulations.
The sheet provides commercial details such as EAN 4017918112295, packaging of 50 pcs, weight of 0.00667 kg per piece, and lists compatible accessories and drawing information for mounting and wiring.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 5 |
| Color | green |
| Assembly type | Soldering |
| Weight per piece | 0.00667 kg |
| EAN | 4017918112295 |
| Dimension a | 15.24 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Hole diameter | 1.2 mm |
The nominal current is 8 A.
It has 5 positions.
The pitch is 3.81 mm.
The nominal voltage rating is 160 V.
