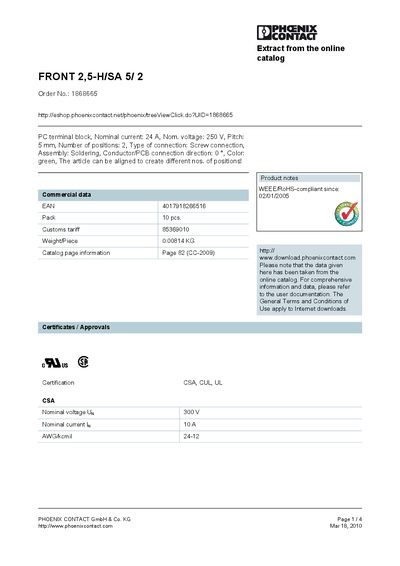

This document describes the features and characteristics of the PC terminal block product FRONT 2,5-H/SA 5/ 2 from PHOENIX CONTACT GmbH & Co. KG, such as nominal current, nominal voltage, number of positions, and type of connection.
The FRONT 2,5-H/SA 5/2 is a green screw‑connection terminal block with a 5 mm pitch and two positions. It is designed for a nominal current of 24 A and a nominal voltage of 250 V, and can be assembled by soldering.
The document lists accessories such as end covers, pitch spacers, marker pens and cards, as well as certification information (CSA, CUL, UL) and compliance details (WEEE/RoHS). Contact information for Phoenix Contact GmbH & Co. KG is provided at the end.
| Nominal current | 24 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 2 |
| Type of connection | Screw connection |
| Assembly method | Soldering |
| Color | Green |
| Weight per piece | 0.00814 kg |
| Package quantity | 10 pcs |
| WEEE/RoHS compliance date | 02/01/2005 |
| Certifications | CSA, CUL, UL |
The nominal current is 24 A.
The pitch is 5 mm.
It has two positions.
It is certified by CSA, CUL and UL.
