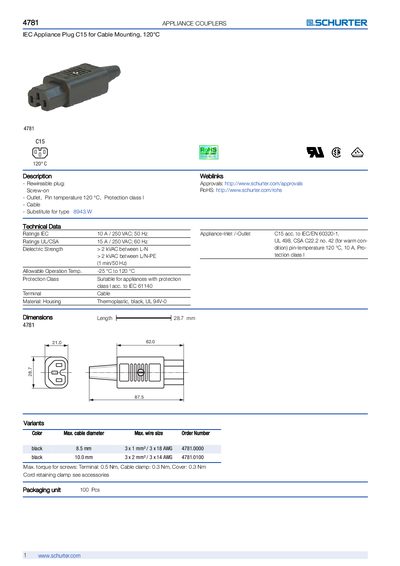

This article describes the features of the IEC Appliance Plug C15 for cable mounting, including rewireable plug, 120°C pin temperature, and protection class I. It also provides detailed information on technical data and dimensions.
The 4781 appliance coupler is a rewireable IEC C15 plug designed for cable mounting with a pin temperature rating of 120 °C. It complies with IEC/EN 60320‑1 and UL/CSA standards, making it suitable for appliances requiring protection class compliance.
Key specifications include IEC ratings of 10 A / 250 VAC at 50 Hz, UL/CSA ratings of 15 A / 250 VAC at 60 Hz, dielectric strength over 2 kVAC, and operation temperatures from –25 °C to 120 °C. The black thermoplastic housing measures 28.7 mm in length, supports cable diameters up to 8.5 mm (or 10.0 mm for the larger variant), and requires specific torque settings for screws.
| IEC rating | 10 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA rating | 15 A / 250 VAC, 60 Hz |
| Pin temperature | 120 °C |
| Dielectric strength | > 2 kVAC between L‑N |
| Allowable operating temperature | -25 °C to 120 °C |
| Housing material | Thermoplastic, black, UL 94V‑0 |
| Length | 28.7 mm |
| Maximum cable diameter (black) | 8.5 mm |
| Maximum cable diameter (other) | 10.0 mm |
| Maximum torque – terminal screw | 0.5 Nm |
| Maximum torque – cable clamp | 0.3 Nm |
| Maximum torque – cover screw | 0.3 Nm |
| Packaging unit | 100 pcs |
The IEC rating is 10 A / 250 VAC at 50 Hz.
It can operate from –25 °C up to 120 °C.
Apply 0.5 Nm to the terminal screw and 0.3 Nm to the cable clamp and cover screws.
