This product is a power entry module from the 6200 series of Schurter, with 1 fuseholder and 1 connector, rated at 10A/250VAC, 50Hz, rated at 10A/250VAC, 60Hz, allowing working temperature from -25°C to 70°C, with IP40 protection class, suitable for devices with protection class I.

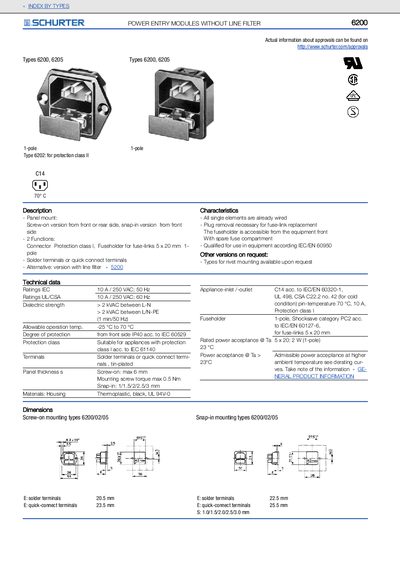

The SCHURTER 6200 and 6205 series are 1‑pole power entry modules designed for panel‑mount applications. They are supplied as screw‑on or snap‑in versions and can be equipped with either solder or quick‑connect terminals.
Key features include a 10 A / 250 VAC rating, dielectric strength over 2 kVAC, operation from –25 °C to 70 °C, and a Shocksave PC2 protection class. The housing is made of UL‑94V‑0 thermoplastic, and the modules support a maximum panel thickness of 6 mm with a mounting torque of 0.5 Nm.
| Dielectric strength | > 2 kVAC between L‑N and L/N‑PE (1 min/50 Hz) |
|---|---|
| Allowable operating temperature | -25 °C to 70 °C |
| Protection class | Shocksave PC2 (IEC/EN 60127‑6) |
| Panel thickness (screw‑on) | max 6 mm |
| Mounting screw torque | max 0.5 Nm |
| Housing material | Thermoplastic, black, UL 94V‑0 |
| Terminal type | Solder terminals or quick‑connect terminals, tin‑plated |
| Rated power acceptance @ 23 °C | 2 W (1‑pole) |
The modules can operate from –25 °C up to 70 °C.
Both solder terminals and quick‑connect (tin‑plated) terminals are offered.
